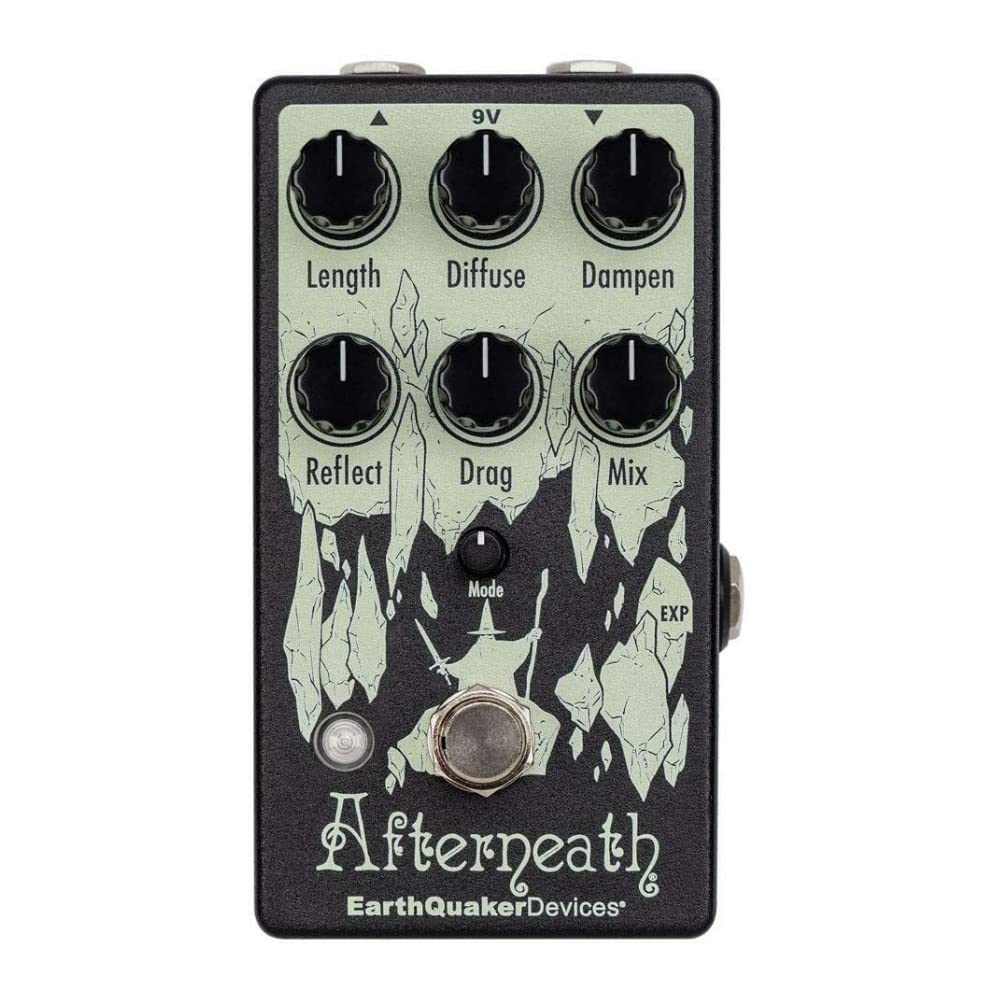

Earth Quaker Devices Afterneath V3 Reverb Pedal

1. Unquantized: Smooth, unquantized response over the operating range

2. Unquantized with Slew: Smooth, unquantized response over the entire operating range, but with a musical slew that is reminiscent of turning the varispeed knob on a vintage British tape delay. The “Drag” will lag behind the knob or cv changes, but then quickly catch up.

3. Unquantized Volt/Octave: Smooth and unquantized, yet scaled to align with the 1v/octave curve to allow melodic modulation of audio in the buffer, or control the frequency of self-oscillation like a voltage controlled oscillator.

4. Chromatic Scale: Quantized 1v/octave to the chromatic scale

5. Minor Scale: Quantized 1v/octave to the minor scale

6. Major Scale (Lydian): Quantized 1v/octave to the major scale (Lydian)

7. Pentatonic Scale: Quantized 1v/octave to the pentatonic scale

8. Octaves & Fifths: Quantized 1v/octave to omit all but octaves and fifths

9. Octaves: Quantized 1v/octave to omit all but octaves

Specs

Dimensions

4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw

100 mA

Input Impedance

1 MΩ

Output Impedance

500 Ω

Expression Jack

This is an expression pedal control jack for the Drag. The Afterneath requires an expression pedal with a value of 50k, we recommend the Mission Engineering EQD-1.  While it will work with a standard 10k expression pedal, a 50k expression pedal will allow you to access the full range of each mode.

• Tip is the wiper, Ring is 5v and Sleeve is ground.

• You can also use CV with this jack. CV operates 0-5v.

Flexi-Switch® Technology

This device features Flexi-Switch Technology! This electronic switching style allows you to simultaneously use momentary and latching style switching.

• For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

• For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch, the effect will be bypassed.

The Afterneath uses electronic buffered bypass, it requires power to pass signal and the buffer is always active. You may experience a pop the first time the Afterneath is switched on after power up.

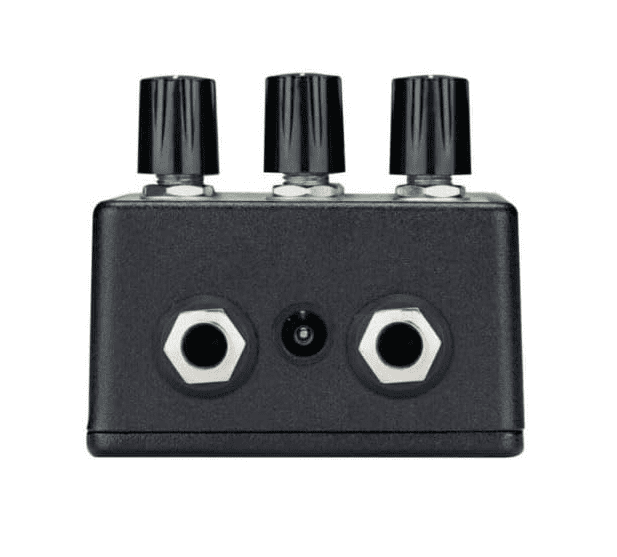

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Artwork

Artwork by Matt Horak
