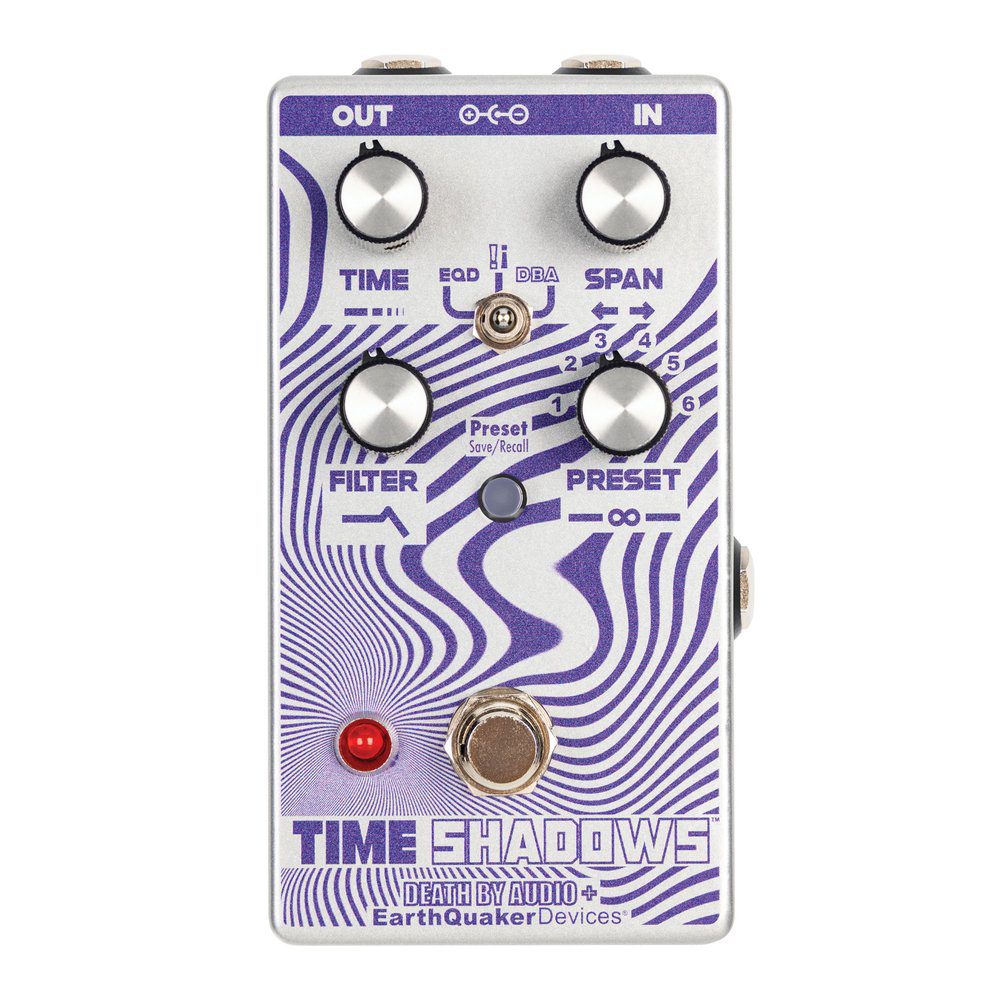

Name: Earth Quaker Devices Time Shadow V2 Multi-Delay Resonator
SKU: EQDTIMEV2
Availability: BackOrder

Description
Reviews (0)

Description

This joint collaboration between EarthQuaker Devices and Death By Audio is a major update to the original Time Shadows that was released in 2020 and limited to 1000 units! Time Shadows now features 3 modes, user assignable expression control and 6 preset slots to save and recall your favorite settings. The EQD Mode is an envelope controlled sub-octave filter delay, the ALL NEW !¡ Mode is a dual delay where each repeat simultaneously shifts up and down with each regeneration, and the DBA Mode is a multi-delay regenerating filter. All three sounds are wildly different from each other and yet share a perfectly designed harmony to be completely complementary and suitable for every style and genre of music.

Features

Presets

Time Shadows has six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the mode switch and the expression jack assignment can be saved and recalled in any of the slots.

Operating Modes

Time Shadows has two operating modes which are indicated by the color of the Save/Recall switch LED. In Live mode, the pedal will operate exactly where the controls are set and any changes will have no effect on the presets unless saved. In Preset mode, stored presets, including expression pedal mapping, are selected using the Preset switch, and the physical settings of the controls will be ignored. It’s never been easier to switch between Live and Preset modes on the fly, vastly expanding your sonic cosmos – no bending down required!

User-Assignable Expression Control

Use any TRS expression pedal to take control over the Time, Span or Filter.

Specs

Pedal Type: Subharmonic Multi-delay Resonator
Analog/Digital: Digital
Presets: 6 x User, 3 x Modes
Effects: Envelope-controlled Sub-octave Filter Delay, Multi-delay Regenerating Filter, !¡ Dual Delay Repeat Shift
Max Delay Time: 1 second (EQD), 500ms (!¡ mode), 1 second (DBA)

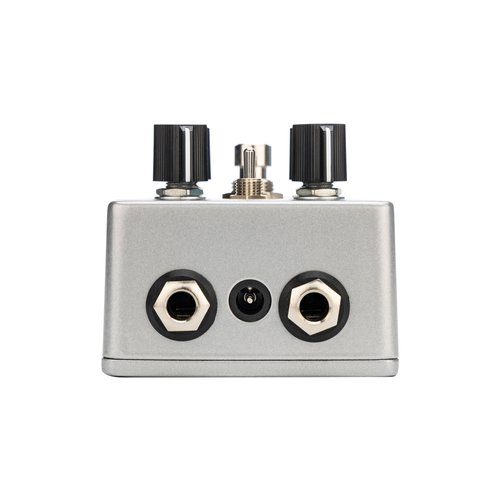

Inputs: 1 x 1/4″
Outputs: 1 x 1/4″
Other I/O: 1 x 1/4″ TRS (expression/CV)
Bypass Switching: Relay-based True Bypass
Features: Flexi-Switch, User-assignable Expression Control, Accepts 0V-3.3V Control Voltage
Power Source: 9V DC power supply (sold separately)
Power Usage: 75mA
Height: 2.25″
Width: 2.5″
Depth: 4.75″
Manufacturer Part Number: EQDTIMEV2USA
