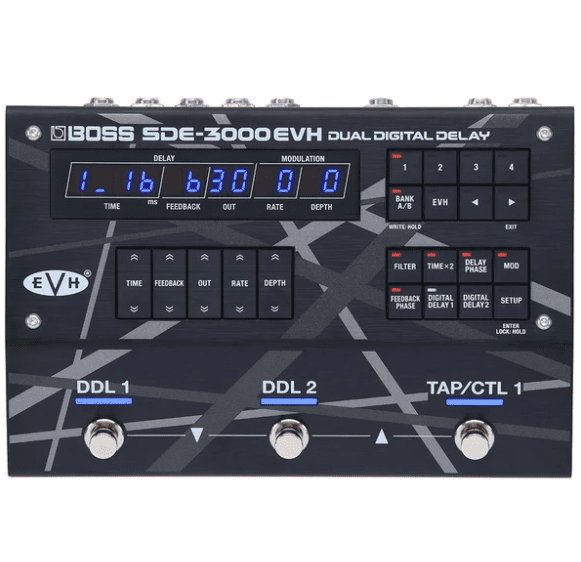

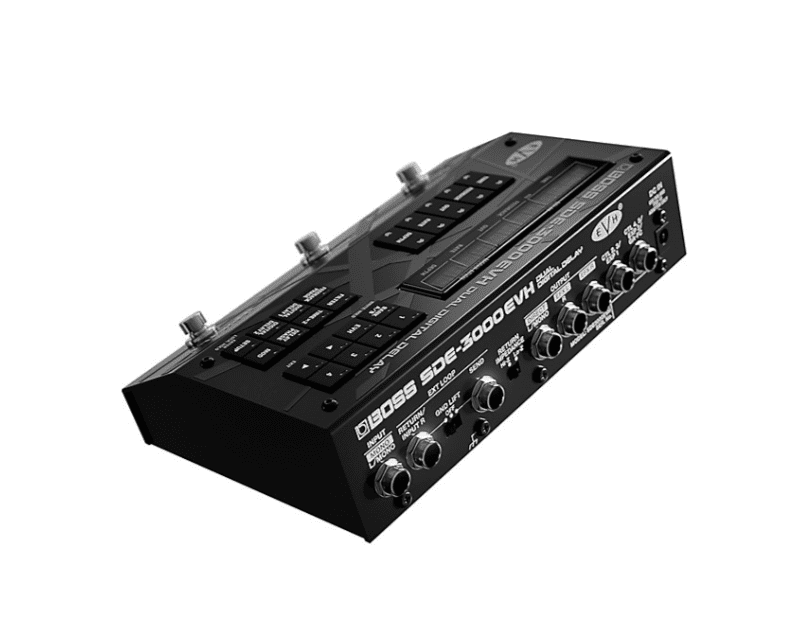

BOSS SDE-3000 EVH Dual Digital Delay

Description

An extremely faithful recreation of the digital delays used in EVH’s personal live rig.

Features

• A faithful re-creation of the Roland SDE-3000 rackmount digital delays in EVH’s former live guitar rig
• Replicates the original’s gain-dependent frequency response, anti-aliasing filter saturation, and component modulation
• Emulates the distinctive coloration of the original unit’s external feedback loop circuit
• Mirrors nearly all of its predecessor’s parameters
• Retro display and panel controls are based on the original unit
• 2 discrete delay lines mimic the functionality of 2 vintage rackmount SDE-3000s
• Widely adjustable delay time with 2 range settings: 0–1500ms and 0–3000ms
• Modulation inspired by the original unit with identical analog LFO behavior
• Phase switches for the primary delay and delay feedback loop
• Low- and high-cut filters enable shaping of delay feedback sounds
• Assignable onboard footswitch for tap tempo, hold, and more
• External footswitch jacks accommodate up to 4 footswitches, 2 expression pedals, or a GA-FC/GA-FC EX foot controller
• MIDI I/O on space-saving mini TRS jacks
• Ample analog I/O — accommodates a variety of mono and stereo setups
• Enough routing flexibility to build an EVH-worthy wet/dry/wet rig
• Send/return functionality interfaces with pedals or an amplifier’s effects loop via the 4-cable method
• Selectable impedance on the effect return for optimizing tone with different amplifiers
• Includes 3 ground-lift cables for eliminating hum with multi-amplifier setups
• 100 recallable presets — 8 with the exact settings from EVH’s live rig
• Eye-grabbing EVH aesthetics

Specs

• Pedal Type:Delay
• Analog/Digital:Digital
• Presets:100 x User
• Effects:Delay
• Max Delay Time:3000ms
• Tap Tempo:Yes
• Inputs:1 x 1/4″, 1 x 1/4″ (fx loop return)
• Outputs:2 x 1/4″ (efx out), 1 x 1/4″ (direct out), 1 x 1/4″ (fx loop send)
• MIDI I/O:2 x 1/8″ (in/out), USB
• Other I/O:2 x 1/4″ (control/expression)
• USB:1 x USB-C
• Power Source:Roland PSB-1U power supply (included)
• Power Usage:450mA
• Height:2.12″
• Width:7.87″
• Depth:5.37″
• Weight:2.4 lbs.
• Manufacturer Part Number:SDE-3000EVH
